Wifi/Bluetooth/PS2 Handle Wireless Control TS100 Metal Smart Shock-Absorbing RC Tank Chassis Kit 12V DC Motor DIY For Arduino

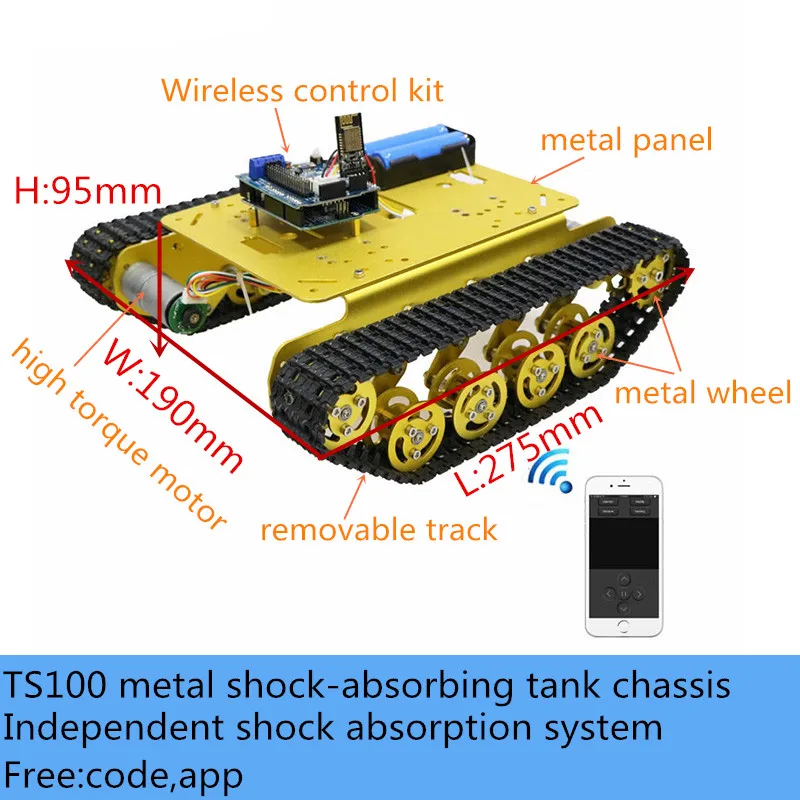

TS100 tank chassis parameters:

• Material: aluminum alloy
• Color: Golden
• Size: 275*190*95mm (length * width * height)
• Net weight: about 1.2kg
• Track: engineering plastic (4.1cm wide, freely removable)
• Drive wheel: metal
• Bearing wheel: metal
• Motor:12V 300rpm with encoder motor
• Independent damping system

12V 300rpm with encoder motor:

• Model: 25GA-310
• No-load current: about 220mA
• Load torque: about 0.6kg.cm current 500mA
• Power: 1.6w
• Stall torque: about 2kg.cm current 2A
• Name: 12V DC motor with code wheel
• Voltage: 12V
• Speed: 300rpm
• Shaft diameter: 4mm

Controller kit:

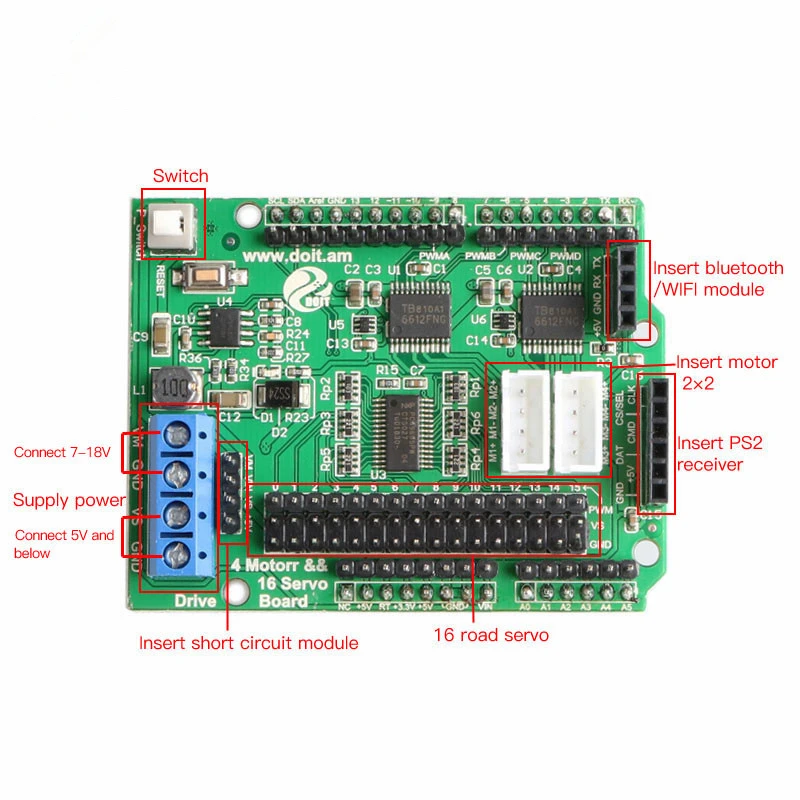

Module pin description and schematic:

• 16-channel servo & 4-channel motor driver board, driven by TB66124, PCA9685 for 16-channel servo control;
• Bring out the Arduino UNO I/O pin;
• The maximum input voltage of the power supply is 15V/DC;
• Reserve Bluetooth & WIFI module sockets;
• Reserve PS2 handle socket;
• Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak;
• 16-way servo drive pins, power supply can be switched by external/internal power supply of jumper cap.

Product technical specifications:

power input:

• Motor power supply (VM): 4.5V ~ 36V, can be powered separately;
• Servo power (VIN): 5 ~ 18V, can be powered separately;

Single power supply use:

• Open circuit VM and VIN, (separately control the motor, 6 ~ 36V);
• Open circuit VS and VIN, separately control the servo (6 ~ 18V);
• Short-circuit VM and VIN while shorting VS and 5V. Simultaneous control of motor (6 ~ 18V) and 16 5V servo

Shipping list:

• 1 × TS100 tank chassis bracket kit
• 2 × 12V 300rpm motor
• 1 × wifi/bluetooth/handle control kit (optional)
• Free: code,app,battery box, screw, wrench

Note:

• This product does not include a battery;
• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at gitnova.com.
• If you need to install the manual, please leave your email after placing the order.
