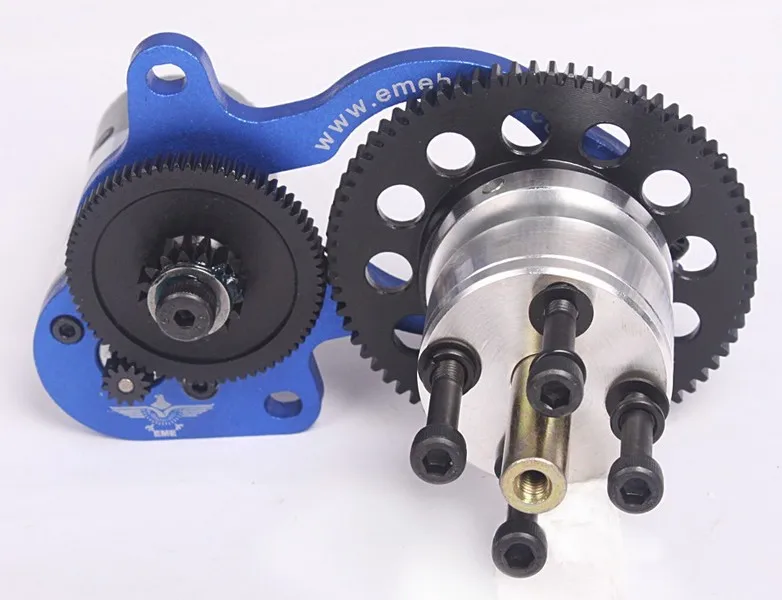

Special Electric Self Starter for DLE30/DLE35RA/ EME35/EME55/DLE55 Gasoline Engine

Specification for 50-60cc starter :

²Total Net Weight:  540g

²Equipped Brushed Motor:

nWorking Voltage:  3-15V (12V for the best )

nMotor Length:  57mm

nMotor Diameter:  37.5mm

nShaft Length:  9mm

nShaft Diameter:  3.17mm

nNet Weight:  205g

²Available Color:  red and blue(sent randomly)

²Recommended ESC:60A(need to buy separately)

²TwoLongInstallation Screws for mounting EME55, EME55-II, EME60 engines

²TwoShortInstallation Screws for mounting DL55, DLE55, EME55-II, DA50, DA60 engines

Kindly Remark:

When mounting and testing the starter, teeth of gear must be clenched properly and solid oil lubrication should be coated on the surface, otherwise the gear will be abraded soon.

Features:

²Only need a bit refitting by users, the starter also can be used forDLA56, DA50, DA60gas engine, those users who are well in refitting can have a try.

²The starter is equipped with single bearing, so power only transfers from the motor to engine. But after the engine started, the power would not pass to motor, so as to protect the motor.

²Equipped with high speed 550A carbon brush motor and cooling fan.

Recommended Electric Switch (Item No.:EME-S-12):

²Coming with protection equipment, when the voltage and current exceed the specified value, the electric starter will automatically open and close

²Acting as a brushed ESC and using radio controller to control the electric starter, so users no need to purchase another ESC
