Hobbywing QuicRun WP-860 / WP 860 WP-880 Dual Brushed Waterproof ESC Speed Controller For 1/8 RC Car

Hobbywing QuicRun WP-860 / WP 860 WP-880 Dual Brushed Waterproof ESC Speed Controller For 1/8 RC Car

Name: Hobbywing QuicRun WP-860 / WP 860 WP-880 Dual Brushed Waterproof ESC Speed Controller For 1/8 RC Car
Brand: WWWPLT
SKU: KIDGIFTMALLPLT_163117218_32538111548_5166
Price: 58.60 USD
Availability: InStock
Rating: 4.3 (377 reviews)

$28.12 - $58.60

Category: Remote Control Toys

Description
Customer Reviews

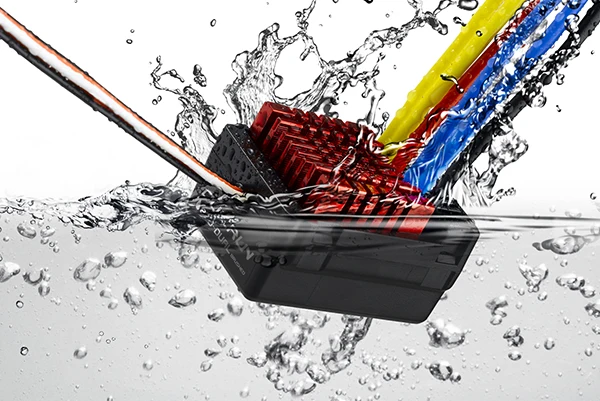

QuicRun-WP-860-Dual Brushed ESC is a speed controller for BRUSHED motors.

1 Features

1.1 Water-proof and dust-proof, suitable for all-weather condition races.
1.2 Small size with built-in capacitor module.
1.3 Four running modes to fit various vehicles
       Fwd/Br/Rev
       Fwd/Br
       Fwd/Rev (also called "Crawler Mode")
       Boat mode
       (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
1.4 Great current endurance capability.
1.5 Switch mode built-in BEC has powerful output.
1.6 Automatic throttle range calibration, easy to use.
1.7 Easy to set the ESC parameters with dial switches.
1.8 Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

2 Specifications

Model		WP-1625-BRUSHED	WP-1060-BRUSHED	WP-880- DUAL-BRUSHED
Fwd. Cont. / Peak Current Rev. Cont. / Peak Current		25A /100A 25A /100A	60A / 360A 30A /180A	60A /360A 30A /180A
Voltage Range		2-3S Lipo or 5-9 NiMH		2-4S Lipo or 5-12 NiMH
Cars Applicable		1/18 &1/16: Touring Car, Buggy, Monster, Truggy	1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank	1/8&1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank; Boat
Motor Limit *	2S Lipo or 6 cells NiMH	280 370 or 380 Size Motor RPM<30000 7.2V	540 or 550 Size Motor: ≥12T or RPM<30000 7.2V	540, 550, 775 Size Motor: ≥12T or RPM<30000 7.2V
	3S Lipo or 9 cells NiMH	280 370 or 380 Size Motor RPM<20000 7.2V	540 or 550 Size Motor: ≥18T or RPM< 20000 7.2V	540, 550, 775 Size Motor: ≥18T or RPM<20000 7.2V
	4S Lipo or 12 cells NiMH	Not Available		540, 550, 775 Size Motor: ≥24T or RPM<15000 7.2V
Resistance		Fwd 0.003Ω Rev 0.003Ω	Fwd 0.001Ω Rev 0.002Ω	Fwd 0.001Ω Rev 0.002Ω
BEC Output		1A/5V (Linear Mode)	2A/5V (Linear Mode)	3A/5V (Switch Mode)
PWM Frequency		1KHz
Dimension / Weight		342414 / 23.5g	36.53218 / 39g	46.53626.3 / 73g
Cooling Fan		Without cooling fan		Cooling fan works with 2-3S Lipo
Running Modes		Fwd/Br/Rev	Fwd/Br/Rev Fwd/Br Fwd/Rev(Crawler)	Fwd/Br/Rev Fwd/Br Fwd/Rev(Crawler) Boat mode
