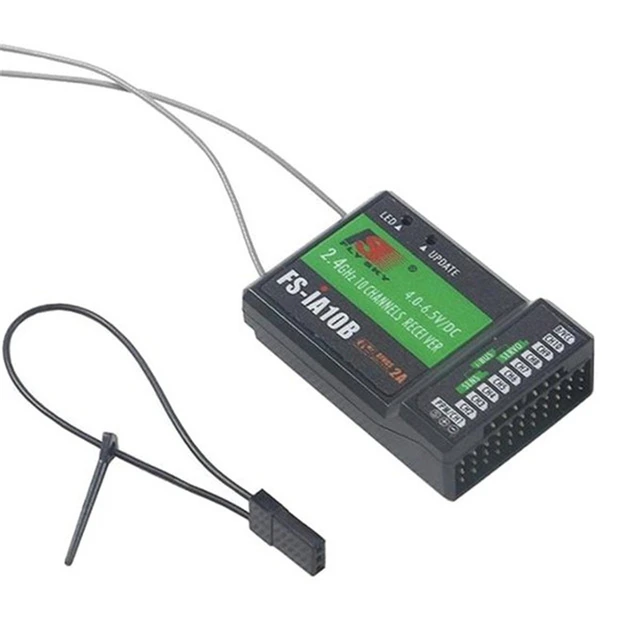

FLYSKY 2.4G IA6 IA6B X6B GR3E iA10B RC Receiver for I6 i6s i6x RC Transmitter for RC Car Truck Boat

Number of Channels: 10

Suitable models: Airplane / glider / helicopter Health

Frequency range :2.4-2 .48 GHz

Number of newspapers: 160

Transmitting power: not more than 20dBm

Receiver sensitivity:-105dBm

2.4G modes: automatic frequency second generation digital system

Encoding: GFSK

Antenna length: 26 mm * 2 (dual antenna)

Weight: 19.3 g

Input power :4.0-6 .5 V DC

Dimensions: 47 * 33.1 * 14.7 mm

Color: Black

Certification: CE0678, FCC

i-BUS Interface: Yes

Data acquisition interface: Yes

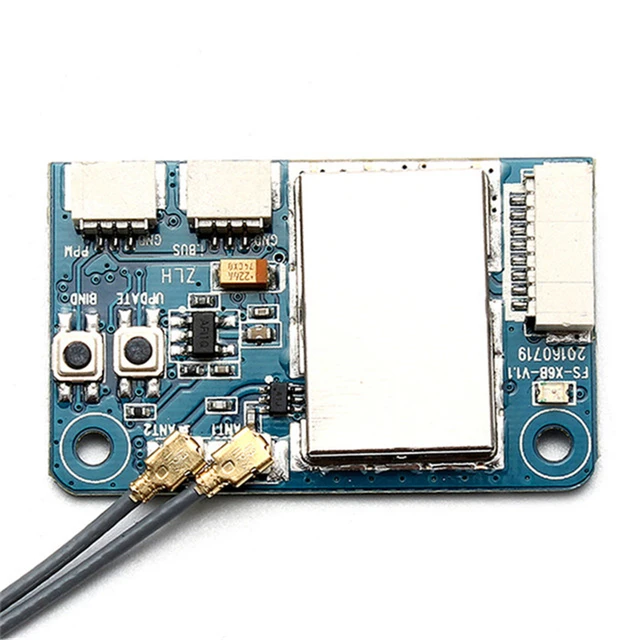

Specification:

Channels 6(PWM),8(PPM),18(i-BUS)

Model Multi-Rotor

RF range 2.408-2.475 GHz

Band width 500 KHz

Number of bands 135

RF power No more than 20 dBm

RX sensitivity -95dBm

2.4GHz protocol AFHDS 2A

Modulation type GFSK

Stick resolution 1024

Low voltage alarm Yes

DSC port PPM/PWM/i-BUS

Antenna length    93mm(Dual Antenna)

Power input 4.0-8.4V

On-line update Yes(Wireless)

Range >300m

Weight 4.5g

Size 36*22*7.5mm

Certification CE0678,FCC ID:N4ZX6B00

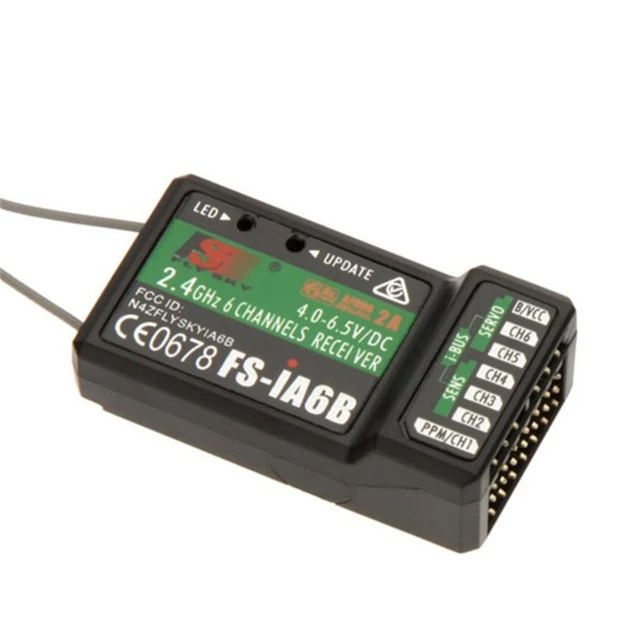

Description:

Brand Name: Flysky

Item Name: FS-iA6B

Channel: 6

Frequency Range: 2.4055–2.475GHZ

b and Width Number: 140

Transmitting Power: ≤ 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

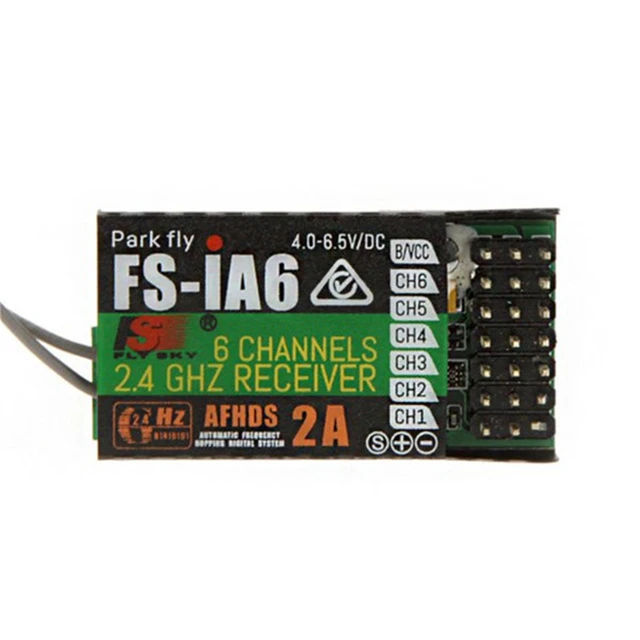

2.4GHz AFHDS 2A system

2.4G modes: Automatic frequency second generation digital systems

Encoding: GFSK

i-BUS Interface: No

Data Acquisition Interface: No

Certification: CE0678,FCC

Usage: Suitable for RC Airplane / glider / helicopter

Compatible Transmitter: for Flysky FS-iA6

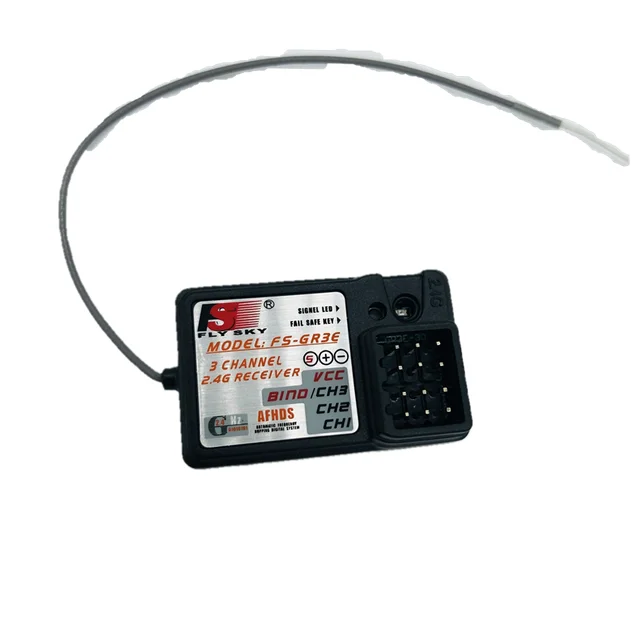

The Standard 2.4Ghz 3-Channel Receiver for RC car and boat .

Compatible with FS 2.4Ghz Surface Transmitter, very easy to bind.

channels: 3 channels

model type:airplane,glid

modulation:GFSK

code type:PPM

frequency:2.4G

certificate: CE FCC

power:5V DC(1.5AAA x 4)  (not included)

Specifications:

Original box: NO

size:35.5 x 22 x 13mm

Ant lenght :180mm

Color : Black

Net Weight:2g

Package weight:8g

Matching(Code)

A. Install the battery to 2.4G transmitter and shut it down.

B. Insert the matching lines to the channel BIND/CH3 port of the receiver.

C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are

flashing and this means the receiver are going to the matching status.

D. Press and hold the button on the transmitter, and then switch on the power supply.

E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)

F. Release the match button on the transmitter, take out the match line.

G. Install the server and then test.

H. If the tests fail, please repeat the action above.

G. If the tests success, then insert the power supply port into VCC, match complete.

(The above ways of match is only suitable for FLYSKY 2.4G products)

1X Receiver
