Parameters

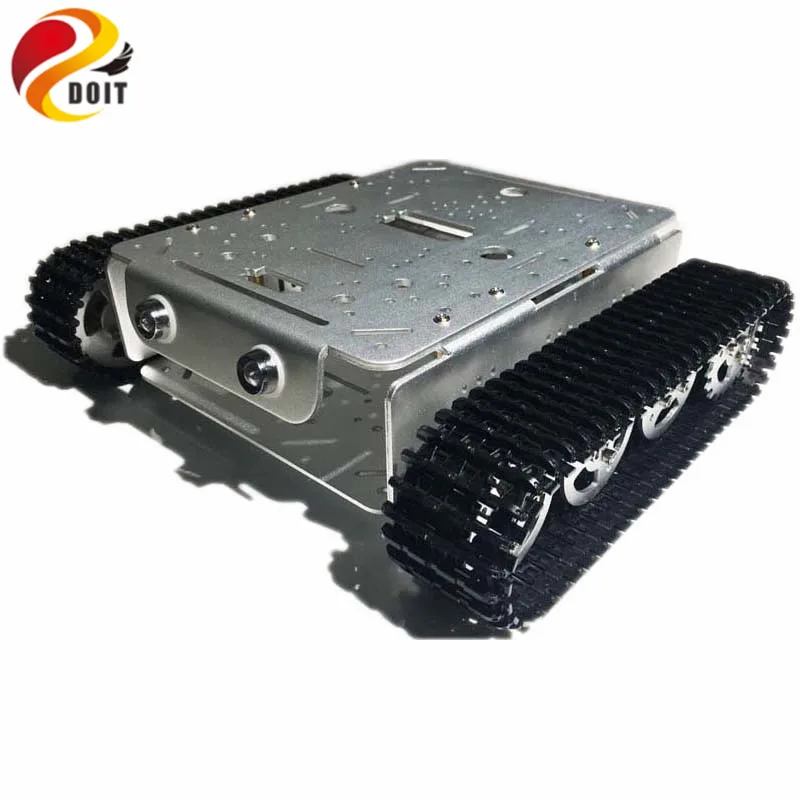

• Name: Caeser TD200 Tank Chassis

• Color: Golden yellow; Silver

• Size: About 300*220*55mm（Length*Width*Height）

• Weight: About 1.45kg

• Design Load: 5kg

Motor Parameters(25mm 9V DC Motor):

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

​

Motor parameters(12V DC Motor):

• Voltage: 12V DC

• RPM: 320RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

Shipping list

• TD200 tracked Tank Chassis: 1 set

• Motor: 9V or 12V(Please leave a message about what you need when you order.)

Warm Prompt

• For the shipping convenience, the tank/car chassis is unassembled.

• Track can be connected by any length with a needle.

• The shipping list is not including the ESPduino controller kit, please contact the service if you need.
